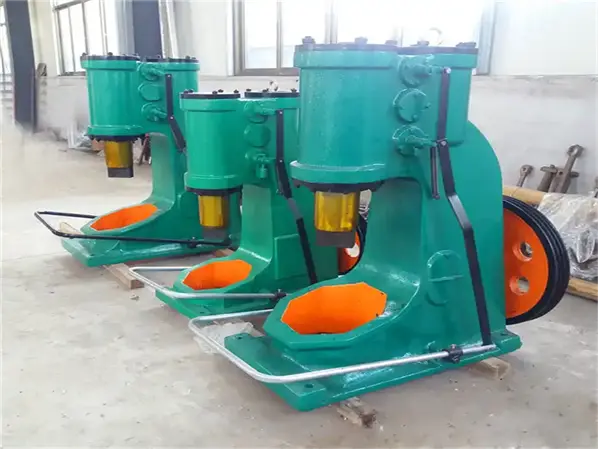

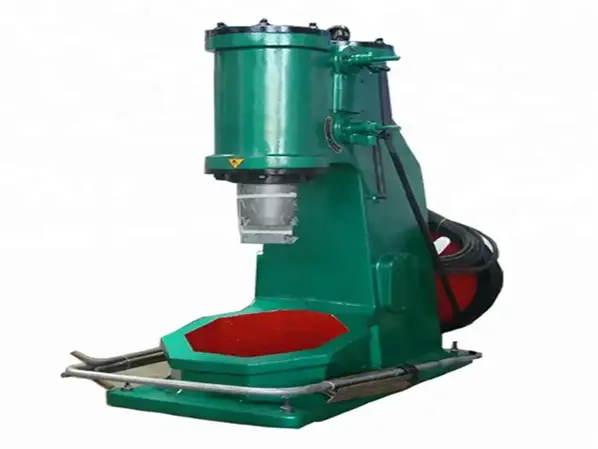

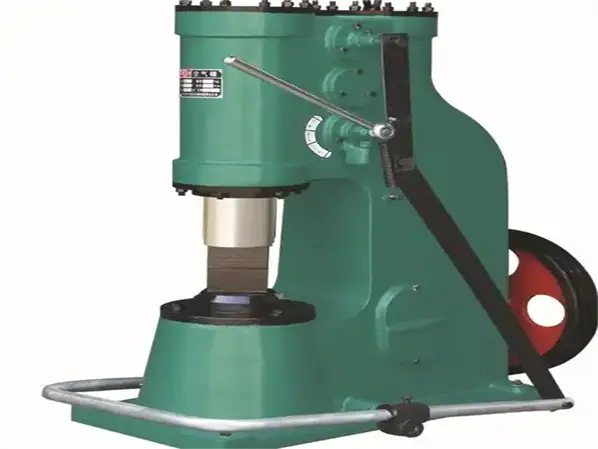

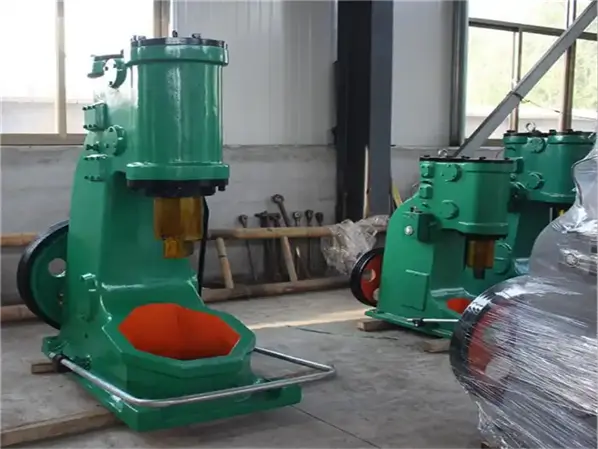

Air hammer is a kind of free forging machine. The compression cylinder compresses the air and sends it into the working cylinder through the distribution valve, pushing the piston and the hammer head to move up and down to hammer. The compression cylinder compresses the air and sends it into the working cylinder through the distribution valve, pushing the piston and the hammer head to move up and down to hammer. Flexible operation, this machine is suitable for various free forgings: such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc., and various open die forgings can be performed using a cushion die. Flexible operation, widely used in the production of small and medium-sized forgings.
Using compressed air as the power, it meets the needs of safe production. The striking force and striking frequency can be controlled by adjusting the air pressure.

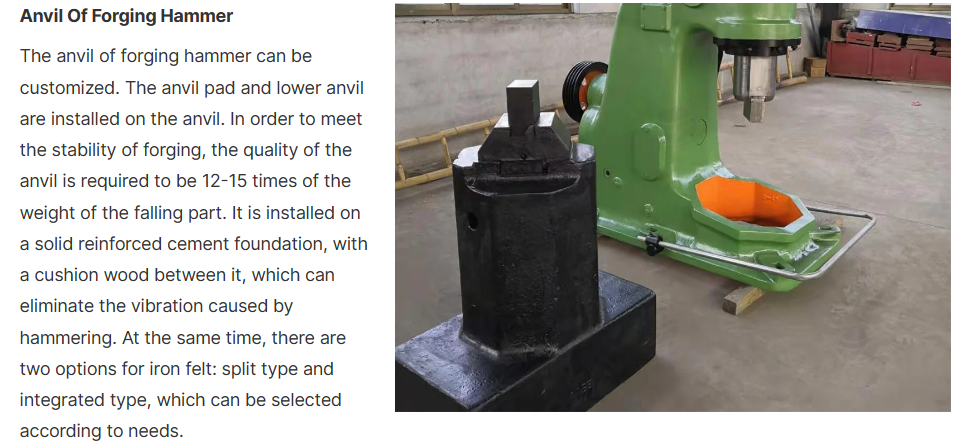

The body material is cast iron, and the large-tonnage air hammer anvil is made of cast steel.
The structure is simple and not easy to damage
| Model | C41-20 | C41-25 | C41-40 | C41-55 | C41-75 |
| Max hit energy(KJ) | 0.22 | 0.27 | 0.52 | 0.7 | 1 |
| Height of working area(mm) | 200 | 240 | 245 | 266 | 300 |
| hit number(min) | 270 | 250 | 245 | 230 | 210 |
| dimension of top and bottom die | 90*50 | 100*50 | 120*50 | 120*55 | 145*65 |
| max round steel can be | 35 | 45 | 68 | 68 | 85 |
| max square steel can be | 30*30 | 40*40 | 55*55 | 52*52 | 65*65 |
| rate power(kw) | 2.2 | 3/2.2 | 4.5 | 5.5 | 7.5 |
| speed of motor(r.p.m) | 1440 | 1440 | 1440 | 1400 | 1400 |
