The functions of the uncoiler are to support the steel coil by tightening the inner hole of the steel coil; the other is to send the head of the steel strip to the leveler by rotating with the cooperation of the straightening machine. Therefore, the performance of the uncoiler is crucial to the entire production line. Shanquan Machinery has continuously optimized and improved the uncoiler structure in many years of design practice, so that the performance of the uncoiler has been improved.

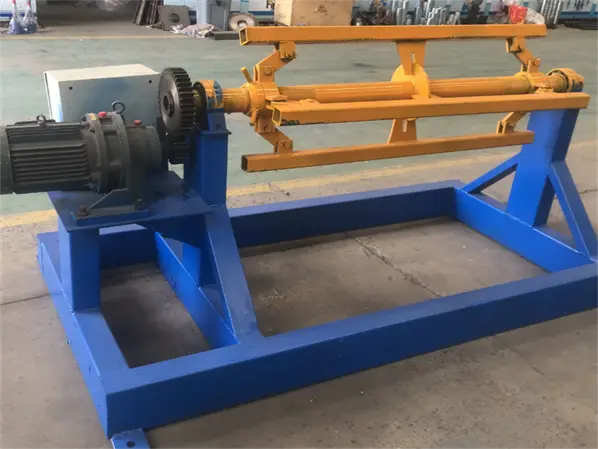

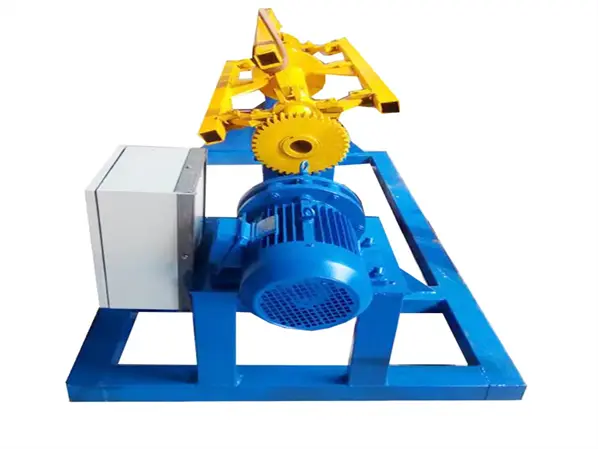

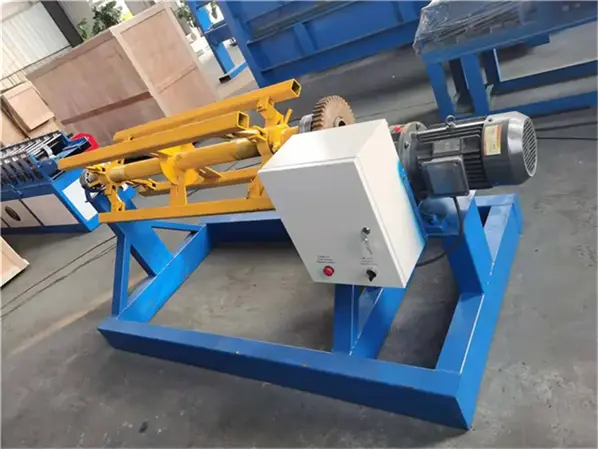

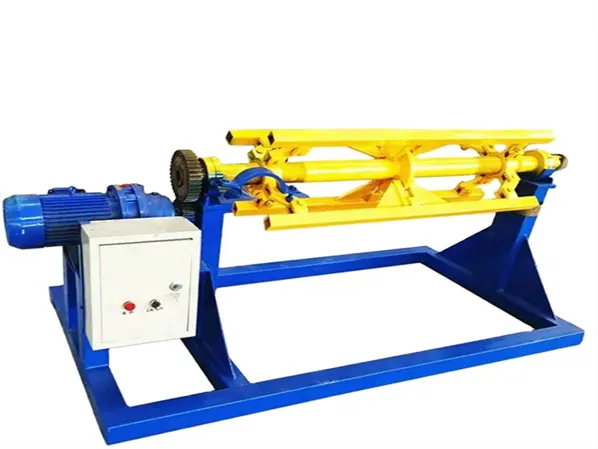

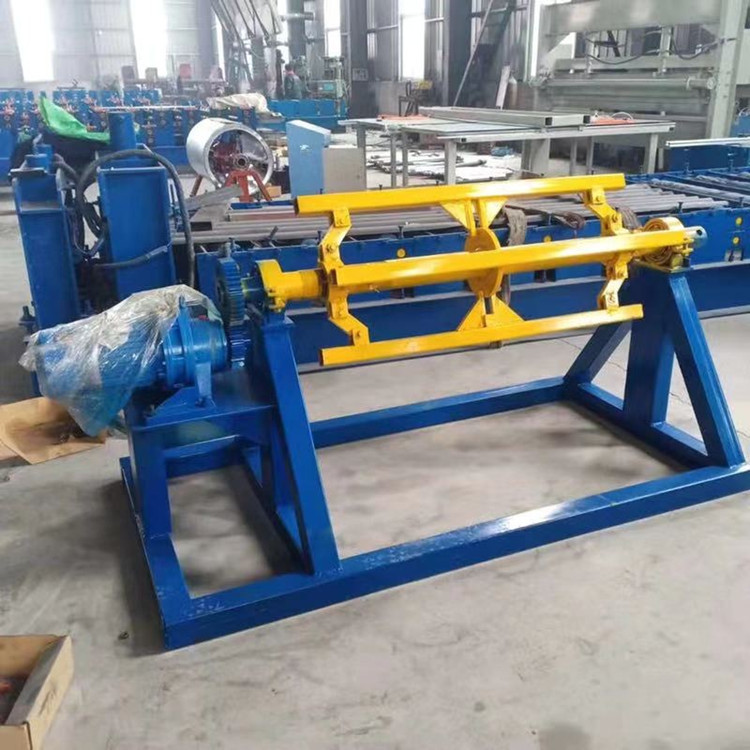

The uncoiler body is a welded box-shaped structure. The variable frequency speed regulating motor drives the reel shaft after deceleration through the gear box to provide the main power for the uncoiler.
The reel of the uncoiler is a hollow shaft, which is supported on the gear box body by two bearings, and a transmission spur gear is installed between the bearings. The gear box is lubricated by forced lubrication and is equipped with two constant speed motors for the closed-loop oil lubrication system.
The core shaft is a cantilever structure. When unwinding, its front end is supported by an external support bearing to maintain the rigidity and stability of the uncoiler.
| Molde | SQ-300 | SQ-500 | SQ-600 | SQ-800 | SQ-1000 | SQ-1300 |
| width(mm) | 300 | 500 | 600 | 800 | 1000 | 1300 |
| material.d(mm) | 450-550 | 450-550 | 450-550 | 450-550 | 450-550 | 450-550 |
| material o.d(mm) | 1000-1200 | 1000-1200 | 1000-1200 | 1000-1200 | 1000-1200 | 1000-1200 |
| material wight(kg) | 500 | 1000 | 3000 | 5000 | 5000 | 5000-10000 |
| speed of feed | 20 | 20 | 20 | 20 | 20 | 20 |
| motor(hp) | 1 | 2 | 3 | 3 | 4 | 5 |
| machine | ||||||
| L*W*H(mm) | 1100*1000*1200 | 1400*1200*1300 | 1500*1200*1300 | 1700*1300*1400 | 1800*1400*1400 | 2000*1800*1800 |
| weight(kg) | 750 | 1000 | 1000 | 11000 | 1500 | 2000 |
