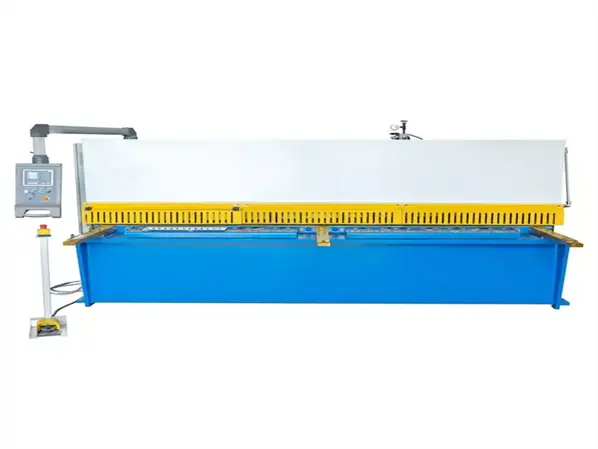

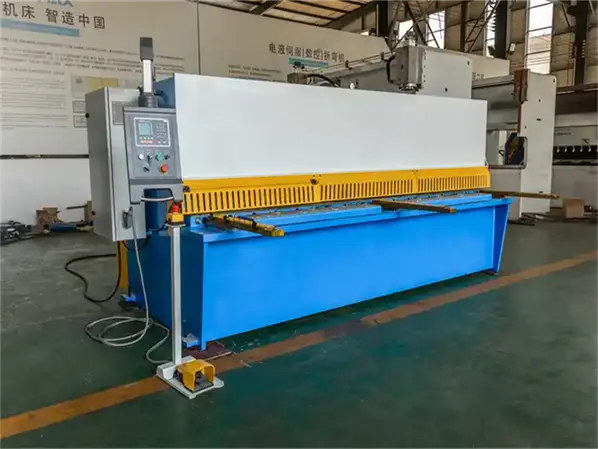

The hydraulic shearing machine is a machine that uses a moving upper blade and a fixed lower blade, and adopts a reasonable blade gap to apply shear force to metal plates of various thicknesses, so that the plates are broken and separated according to the required size.Shearing machine is a widely used shearing equipment in machining. It can shear steel plates of various thicknesses. Commonly used shearing machines are divided into three types: flat shearing, rolling shearing and vibration shearing. Flat shearing machine is the most used. Shearing machines with a shearing thickness of less than 10mm are mostly mechanically driven, while those with a shearing thickness of more than 10mm are hydraulically driven. Generally, they are operated by pedals or buttons for single or continuous shearing of metal.
Hydraulic transmission, swing-type tool holder, the overall welding of the frame is sturdy and durable, and the return stroke of the accumulator cylinder is smooth and fast.

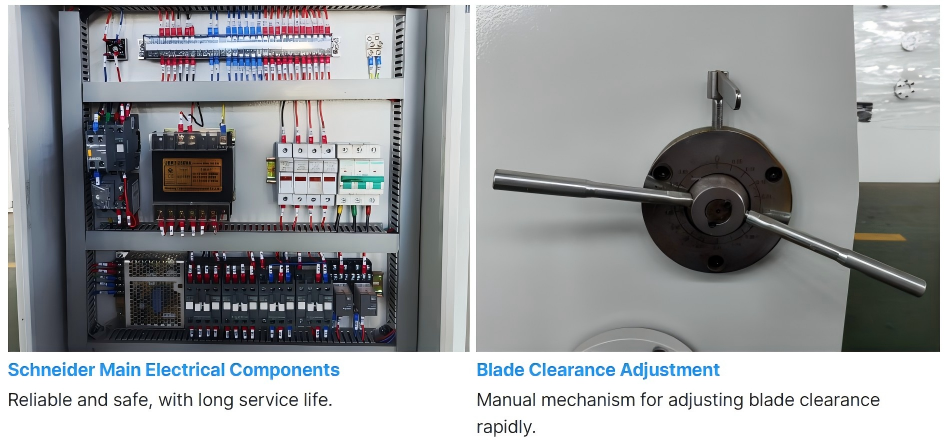

It has the function of stepless adjustment of stroke. The upper knife has two blades and the lower knife has four blades. The gap between the upper and lower blades is adjusted by the handle, and the uniformity of the blade gap is easy to adjust.
The protective fence and electrical interlocking ensure safe operation.
The machine tool pressure plate adopts an independent hydraulic press, and each press has a plastic pad at the end.

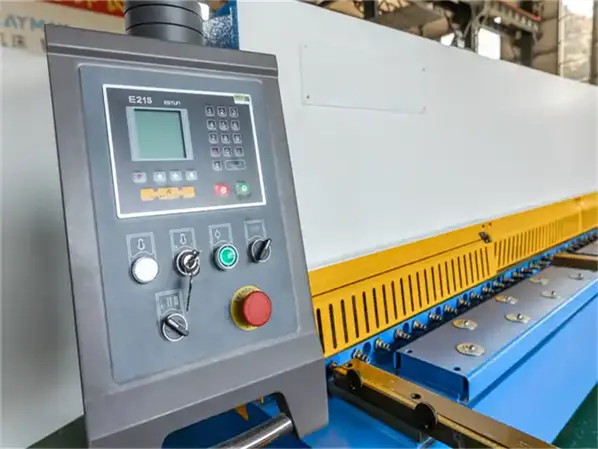

The CNC system of the shearing machine for the rear gauge is E20. The number of shears has a digital display device.

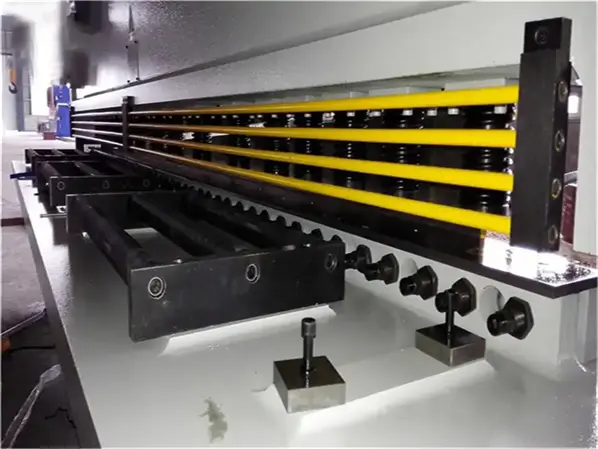

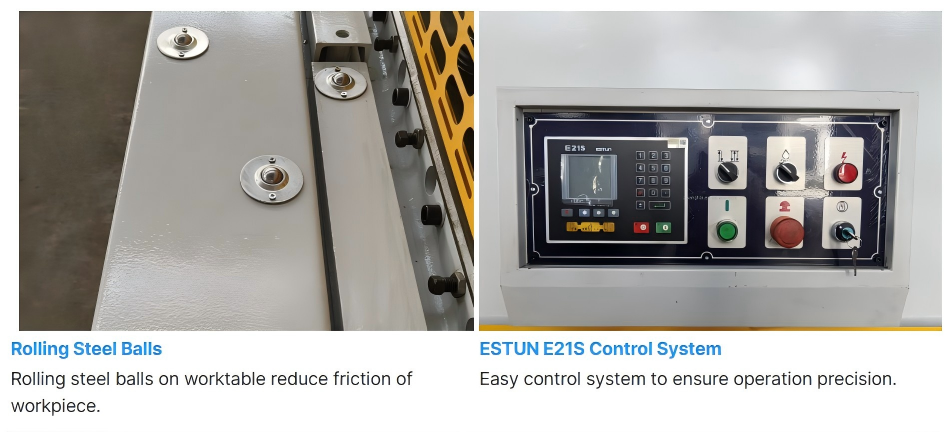

The rolling support device can reduce friction while ensuring that the surface of the workpiece is not scratched.
All-steel welded structure, vibration stress elimination, high strength and good rigidity.

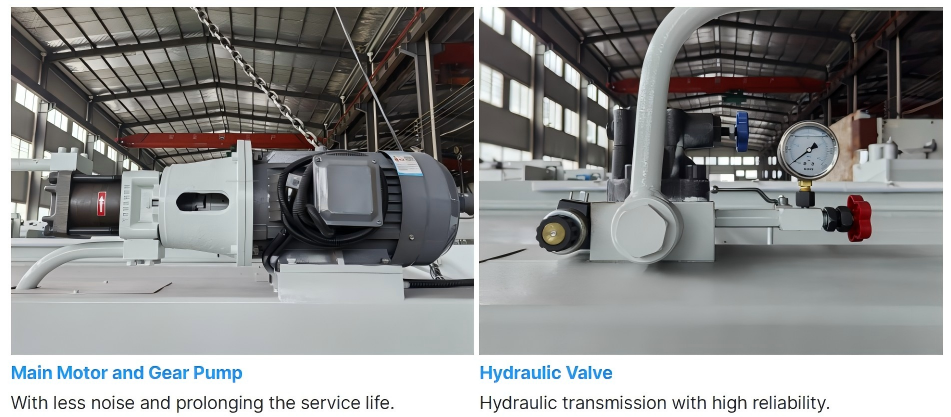

Hydraulic upper transmission, stable and reliable
| Model (QC12Y Series) | Plate Thickness (mm) | Cutting Length (mm) | Shear Angle (°) | Back Gauge Range (mm) | Strokes (min-1) | Main Motor Power (KW) | Overall Dimensions (L/mmxW/mmxH/mm) |
| QC12Y-4x2500 | 4 | 2500 | 1°30’ | 20-500 | 15 | 4 | 3000x1600x1700 |
| QC12Y-4x3200 | 4 | 3200 | 1°30’ | 20-600 | 15 | 5.5 | 3800x1700x1800 |
| QC12Y-4x4000 | 4 | 4000 | 1°30’ | 20-600 | 15 | 5.5 | 4800x1800x1800 |
| QC12Y-6x2500 | 6 | 2500 | 1°30’ | 20-600 | 15 | 7.5 | 3200x1700x1800 |
| QC12Y-6x3200 | 6 | 3200 | 1°30’ | 20-600 | 15 | 7.5 | 4000x1800x1800 |
| QC12Y-6x4000 | 6 | 4000 | 1°30’ | 20-600 | 15 | 7.5 | 4800x1800x1800 |
| QC12Y-6x6000 | 6 | 6000 | 1°30’ | 20-600 | 15 | 11 | 7200x2200x2200 |
| QC12Y-8x2500 | 8 | 2500 | 1°30’ | 20-600 | 15 | 11 | 3200x1800x1800 |
| QC12Y-8x3200 | 8 | 3200 | 1°30’ | 20-600 | 15 | 11 | 4000x1800x1850 |
| QC12Y-8X4000 | 8 | 4000 | 1°30’ | 20-600 | 15 | 11 | 4800x1800x1800 |
