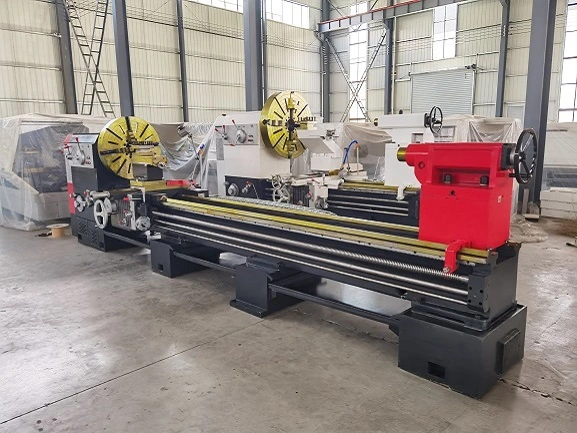

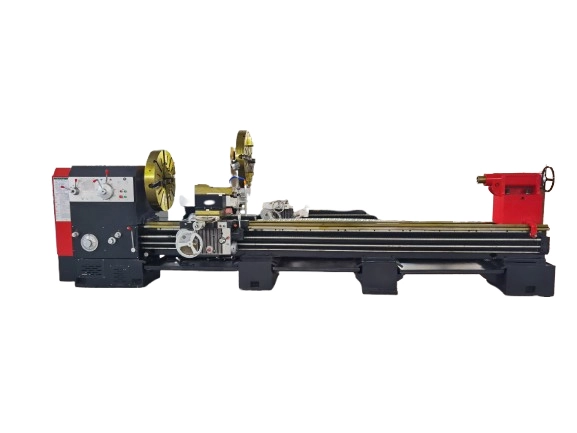

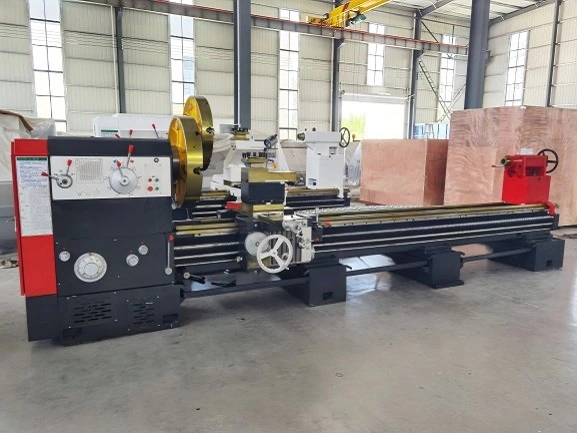

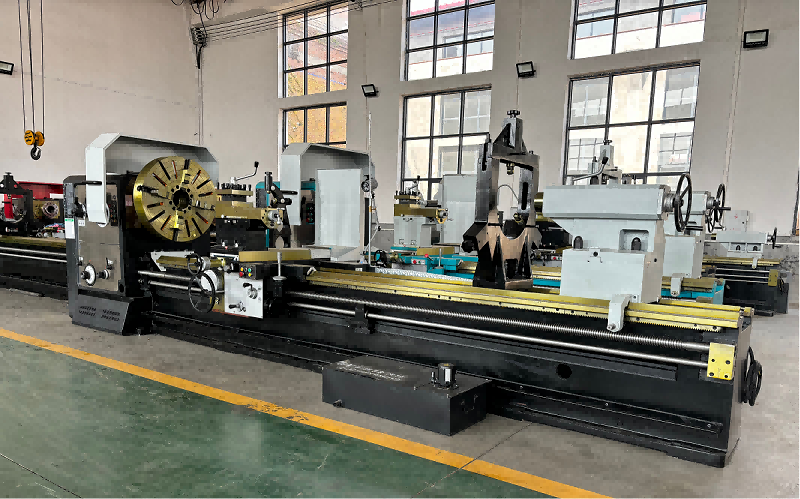

Heavy duty horizontal lathe machine is the improving type of our heavy horizontal lathe. It is based on our long-term production experience, international advanced design methods and manufacturing technology and under the current national latest precision standards, which is the integration of electrical, automatic control, hydraulic control and modern mechanical designs of multiple disciplines and categories of precision manufacturing technology.
CW61100 CW61125 CW61160 heavy duty lathe are suitable for turning or cast iron and steel workpieces, turning of non-ferrous metal parts of big or medium sizes. It can do external cylindrical surface turning, inner hole and end face turning. It can also turn various internal and external metric, inch, module and diametrical pitch threads, the top slide can be used independently for turning of short taper. These lathes are of high power, high rigidity and wide rotating speed range, so it can be used for high speed and strong force turning.
CW Heavy Duty Lathe Machine are universal lathe suitable for high-speed steel and carbide cutting tools for different materials

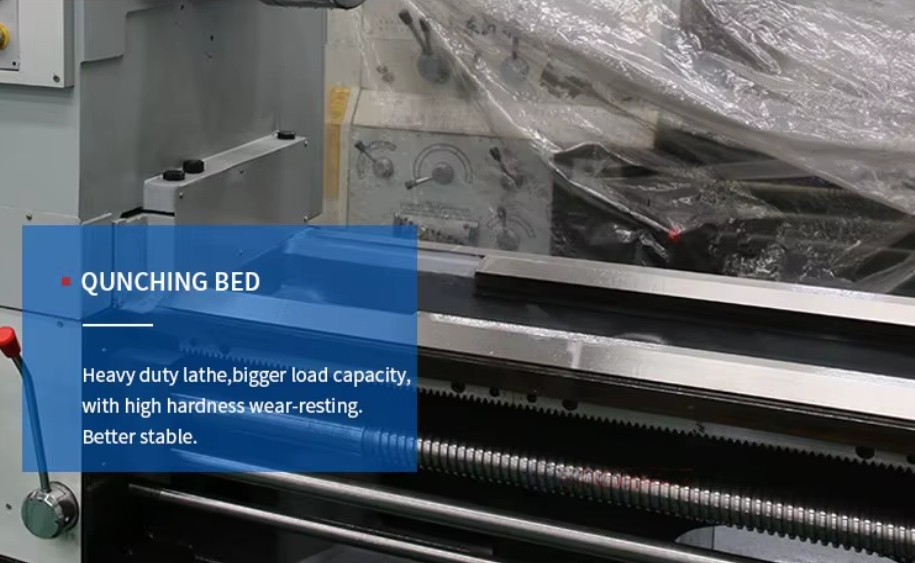

CW Heavy Duty Lathe are medium frequency hardened, and has good hardness and precision;
Triple support of CW Heavy Duty Lathe ensures spindle rigidity and supporting capacity;

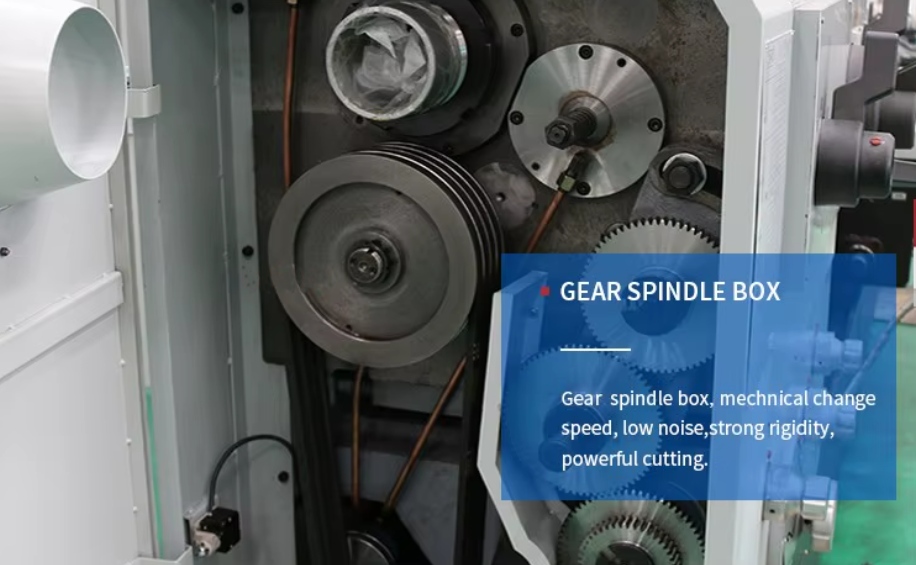

CW Heavy Duty Lathe have the large speed range, and the motion is smooth and the low temperature-rising
No | Item | CW61100 | CW61125 | CW61160 |
1 | Swing over bed mm | 1000 | 1250 | 1640 |
2 | Swing over carriage mm | 615 | 865 | 1250 |
3 | Max length of workpiece mm | 1500/3000/5000/8000/10000 | ||
4 | Max turning length | 1300/2800/4800/7800/9800 | ||
5 | Width of guide | 755 | ||
5 | Spindle nose | A2-15(8×M22) | ||
6 | Spindle bore | 130 | ||
7 | Taper hole of spindle | 1:20/140 | ||
8 | Range of spindle speed | forward:3.15~315 ; reverse:3.5~291 | ||
9 | No. of longitudinal and cross | 56/56 | ||
10 | No. and range of metric thread | 44;1~120 mm | ||
11 | Distance of centerline and tool resting plane mm | 48 mm | ||

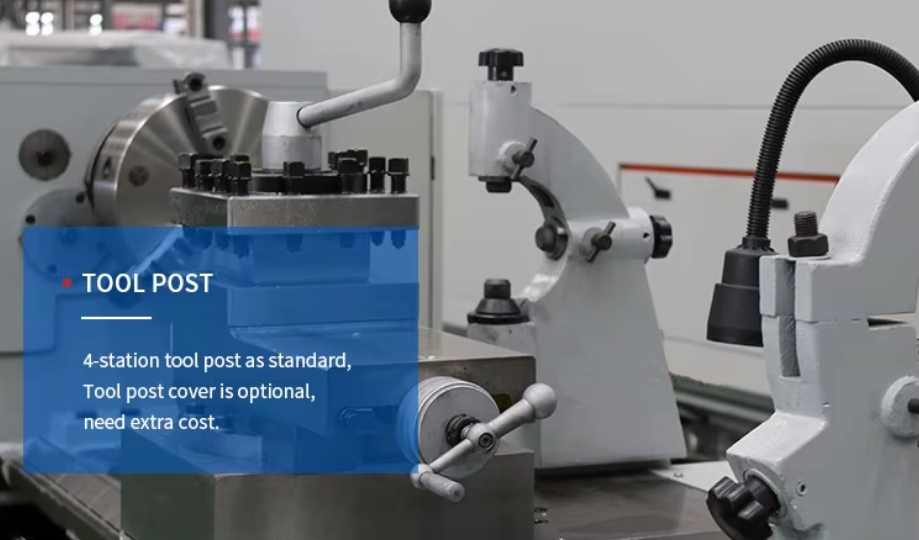

12 | Tool post swing range | ±90° | ||
13 | Max.travel of top slide | 300 mm | ||
14 | Dia. of tailstock mm | 160(6″) | ||
15 | Travel of tailstock quill mm | 300(12″) | ||
