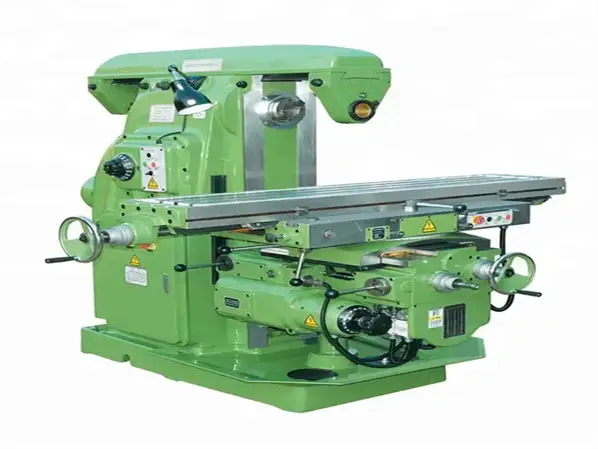

The universal milling machine is suitable for milling planes, bevels, grooves, etc. using various bar milling cutters, circular milling cutters, and angle milling cutters. The machine has sufficient rigidity and power, and has strong processing capabilities. It can perform high-speed and heavy-load cutting work and gear processing. It is suitable for heavy-duty large-scale mechanical processing such as mold special steel processing, mining equipment, and industrial equipment. The workbench of the universal milling machine can rotate 45° to the left and right. When the workbench rotates a certain angle and uses a dividing head accessory, various spiral surfaces can be processed. The three-way feed screw of the universal milling machine is a trapezoidal screw or a ball screw.
The main components of the universal milling machine, such as the base, body, worktable, middle slide, and lifting slide, are all cast with high-strength materials and artificially aged to ensure the stability of the machine tool for long-term use.

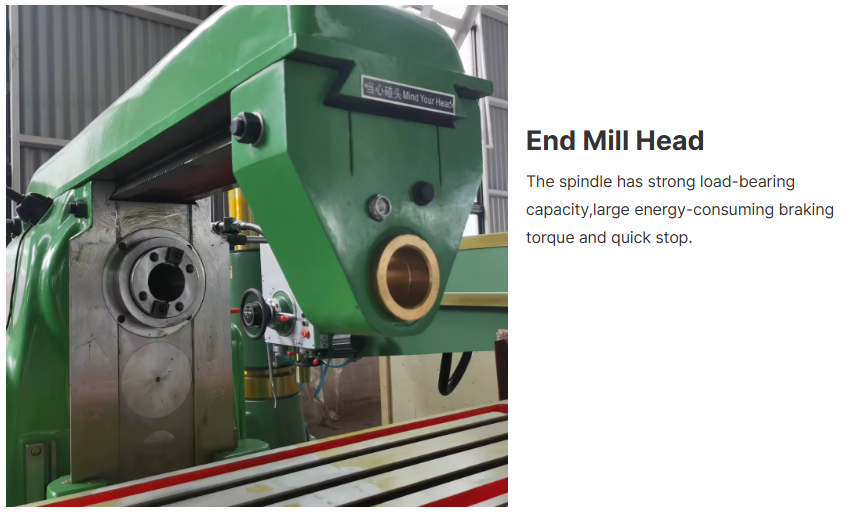

The machine tool spindle bearing is a tapered roller bearing. The spindle of the universal milling machine adopts a three-support structure. The spindle has good system rigidity and strong load-bearing capacity. The spindle adopts energy-consuming braking, with large braking torque, rapid and reliable stopping.
The horizontal rotation angle of the worktable is ±45°, which expands the processing range of the machine tool. The main transmission part and the feed part of the worktable of the universal milling machine both adopt a gear speed change structure, with a wide speed regulation range, convenient and fast speed change.
| SPECIFICATION | X6132B |
| Spindle taper | ISO50 |
| Distance between spindle and table surface | 30-440mm |
| Range of spindle speed | (18steps)30-1500(.p.m) |
| Workbench maximum tuming around | 45 degrees |
| Table size | 1600x320mm |
| Table travel(horizontal/cross/vertical) | 900/255/410mm |
| Range of longitudinal, Cross-travel | (18steps)23.5-1 180mm/min(max2300) |
| Range of cross-travel | (18steps)15-786mm/min(max1540) |
| Range of vertical travel | (18steps)8- 394mm/min(max770) |
| T-slot NO./width/distance of table | 3/18/70mm |
| Main motor | 7.5kw |
| Motor for rapid drive of table | 1500w |
| Motor for vertical drive of table | 1500w |
| Motor of cooling pumps | 120w |
| Speed of cooling pumps | 25L/min |
| Max weight of workpiece | 600kg |
| Overall dimension | 2450x1770x1750 |
| N.W/C.W | 2900/3200kg |
