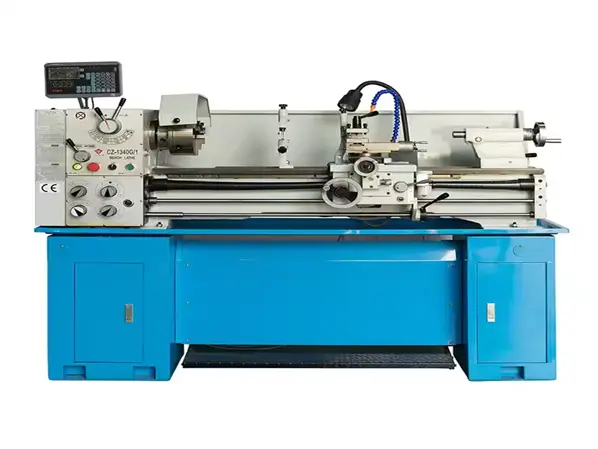

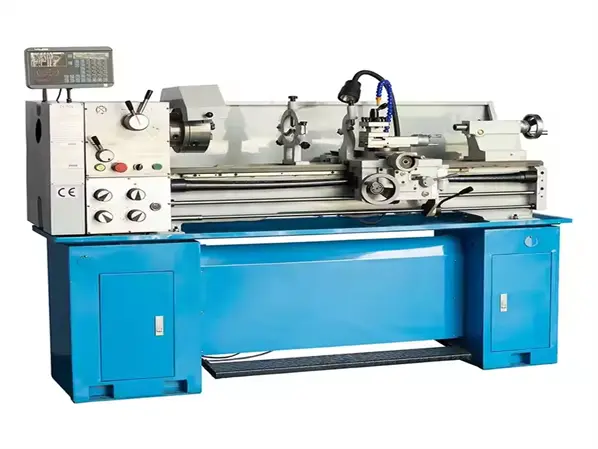

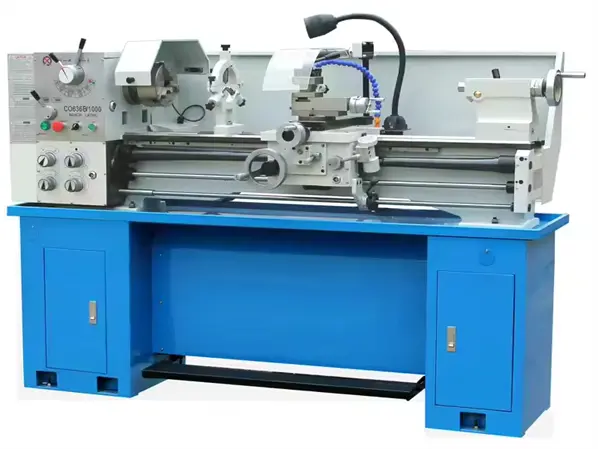

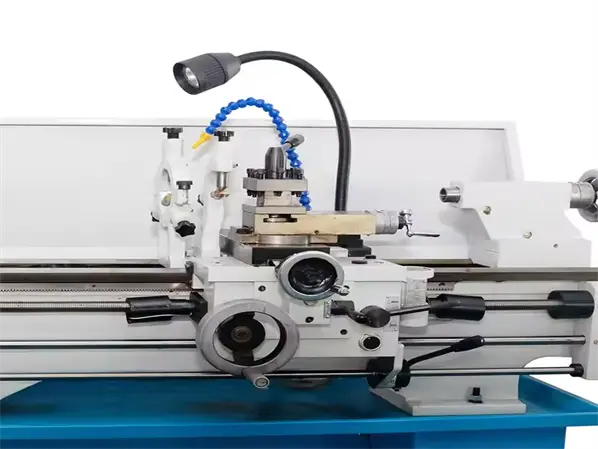

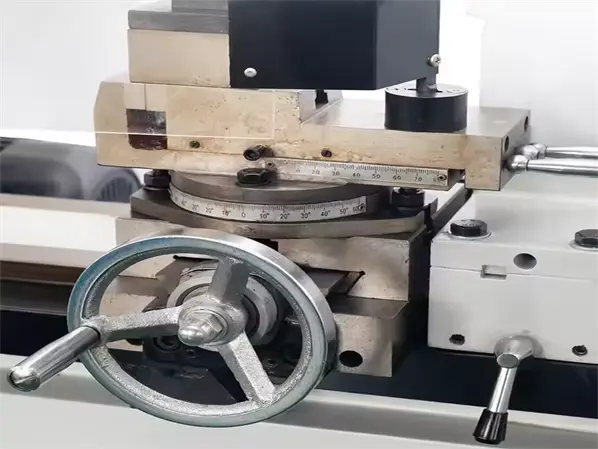

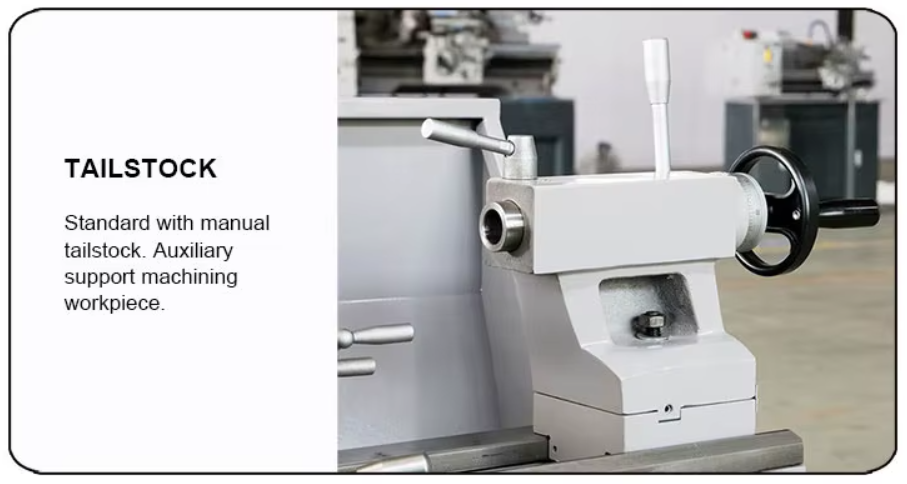

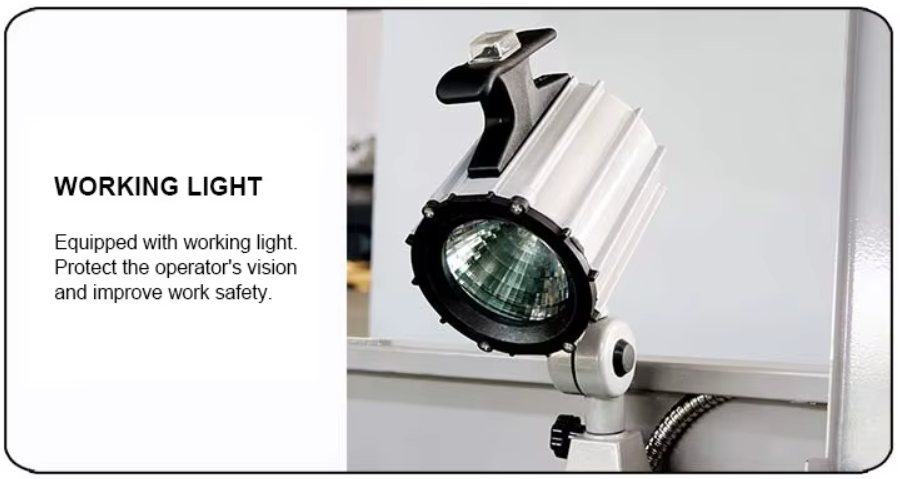

An economical and practical processing lathe that not only has the relatively complete functions of ordinary lathes, but also has the characteristics of lightness and flexibility of light bench lathes, compact and reasonable structure, simple and flexible operation, excellent cutting rigidity, complete basic functions, and quick installation and maintenance.The machine can be used for turning internal and external cylindrical surfaces, end surfaces, cones, and metric and inch threads.It is widely used in small and medium-sized enterprises, scientific research institutions, individual industries and repair industries at home and abroad; with corresponding functional modules, it can achieve other Special cutting processing.

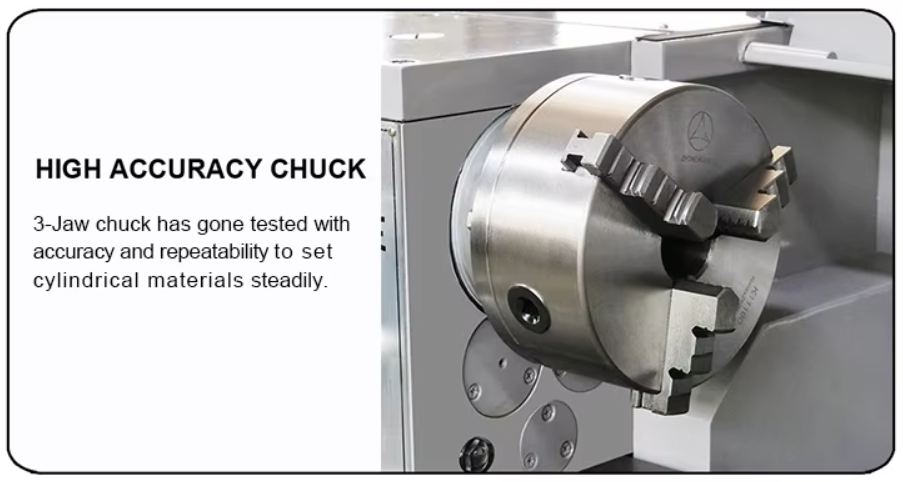

The spindle is supported wish precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Removable gap is provided for larger diameter work.
Easy operation speed change levers.
Easy operating gear box has various feeds and thread cutting function.
Two types for selection: with foot stand in reserve or without foot stand.
The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.

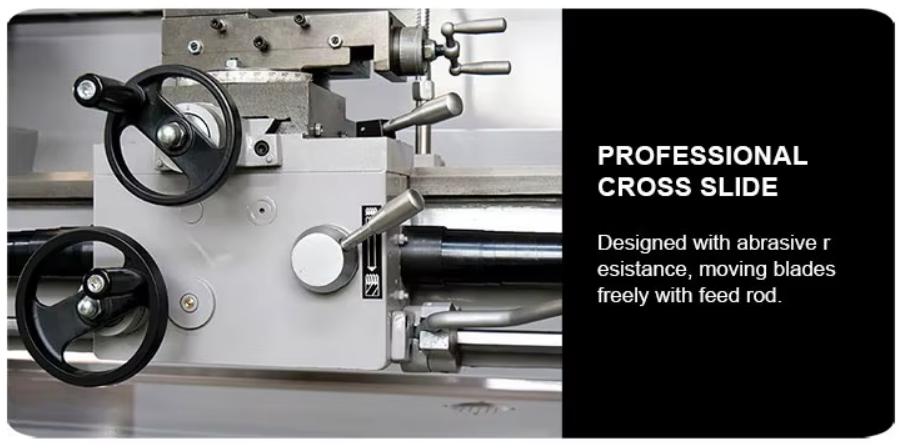

Vertical and horizontal feed adopts interlocking mechanism, safety is good.
The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.
Specifications | CZ1340G | CZ1440G | |
Swing over bed | mm | 330 | 350 |
Swing over carriage | mm | 195 | 220 |
Swing over gap | mm | 476 | 500 |
Width of bed-way | mm | 186 | 186 |
Distance between centers | mm | 1000 | 1000 |
Spindle taper | MT5 | MT5 | |
Spindle bore | mm | 38 | 38 |
Step of speed | 8 | 8 | |
Range of speed | rpm | 70-2000 | 70-2000 |
Head nose | D1-4 | D1-4 | |
Metric thread | mm | 23kinds(0.25-11) | 23kinds(0.25-11) |
Inch thread | T.P.I | 40 kinds(4-112) | 40 kinds(4-112) |
Module thread | M.P | / | / |
Diametral thread | D.P | / | / |
Longitudinal feeds | mm/r | 0.091-2.533(0.0036’’-0.1005’’) | 0.091-2.533(0.0036’’-0.1005’’) |
Cross feeds | mm/r | 0.025-0.69()0.0012’’-0.0345 | 0.025-0.69()0.0012’’-0.0345 |
Diameter of lead screw | mm | 22 | 22 |
Pitch of lead screw | 3mm or 8 T.P.I | 3mm or 8 T.P.I | |
Saddle travel | mm | 1000 | 1000 |
Cross travel | mm | 170 | 70 |
Compound travel | mm | 74 | 74 |
Barrel travel | mm | 95 | 95 |
Barrel diameter | mm | 32 | 32 |
Taper of center | mm | MT3 | MT3 |
Motor power | kw | 1.5(2HP) | 1.5(2HP) |
Coolant motor | kw | 0.04(0.055HP) | 0.04(0.055HP) |
Machine(L×W×H) | mm | 1920x750x760 | 1920x750x760 |
Stand (left)(L×W×H) | mm | 440x410x700 | 440x410x700 |
Stand (right)(L×W×H) | mm | 370x410x700 | 370x410x700 |
Machine(N.W/G.W) | kg | 495/555 | 495/555 |
Stand(N.W/G.W) | kg | 70/75 | 70/75 |
